Permanent, High-Contrast Distal Tip Markers That Survive Sterilization and Procedural Use

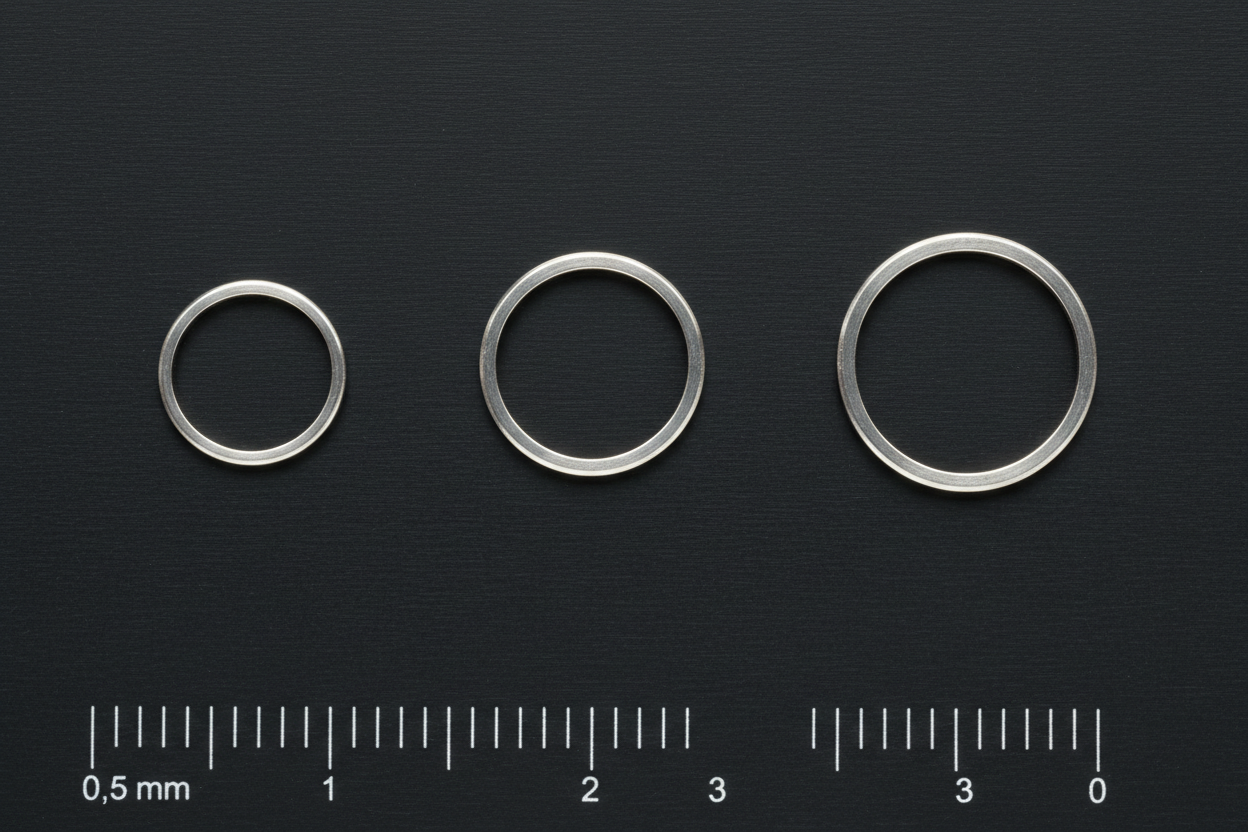

M4D LLC supplies full-ring platinum marker bands for catheter manufacturers requiring permanent, high-contrast distal tip markers that survive sterilization, shipping, and procedural use without positional shift.
Unlike slip-ring variants, the full-ring design features a controlled crimp geometry that plastically deforms the platinum wall uniformly around the catheter shaft OD, generating a radial interference fit with a retention force verified by tensile pull-off testing per internal M4D test method MTP-007. This permanent mechanical lock ensures the band cannot migrate even under repeated catheter flexion through a 180° bend test mandrel. The platinum alloy (Pt-10%Ir available on request) provides >3,000 HU fluoroscopic contrast, making the band visible under standard interventional C-arm imaging at all angulations.
Each band is placed under a stereo microscope at ≥10× magnification, crimped with a calibrated hex crimp tool to a programmed force, and inspected dimensionally with a calibrated optical comparator — all within M4D’s ISO Class 8 cleanroom, with QCBD QMS documentation at every step.
Device Specifications
| Parameter | Value |
|---|---|
| Material | Pt (99.95%) or Pt-10%Ir alloy (specify at order) |
| Fluoroscopic Contrast | >3,000 HU under standard C-arm |
| Crimp Retention | Tensile pull-off per MTP-007, force recorded per lot |
| Wall Thickness | 0.002–0.004 in. standard range |
| Shaft OD Compatibility | 0.025 in. – 0.105 in. |
| Bend Test | 180° mandrel, post-crimp, 0 migration pass criteria |
| EtO Compatibility | Yes — outgassing protocol per ISO 11135 |
| Lot Traceability | Full COA + crimp force log + optical inspection record |
| Regulatory | ISO 13485:2016, FDA Registered, QCBD QMS |
Minimum order: 10 units. Width, ID/OD, and alloy customization available per drawing.
