Full stent delivery system on surgical-steel-gray background, diagonal orientation, 2:1 macro inset of stent-loaded balloon section with dual platinum full-ring marker bands at balloon shoulders

Balloon-Expandable Stent Delivery System — Hand-Braided Catheter Platform

$4,199.00
$4,199.00
Skip to product information
Full stent delivery system on surgical-steel-gray background, diagonal orientation, 2:1 macro inset of stent-loaded balloon section with dual platinum full-ring marker bands at balloon shoulders
  • Full stent delivery system on surgical-steel-gray background, diagonal orientation, 2:1 macro inset of stent-loaded balloon section with dual platinum full-ring marker bands at balloon shoulders
  • IR suite with C-arm in AP position, balloon-expandable stent delivery system beside iliac vascular phantom on procedure table, clinical endovascular environment
  • Full stent delivery system on surgical-steel-gray background, diagonal orientation, 2:1 macro inset of stent-loaded balloon section with dual platinum full-ring marker bands at balloon shoulders
  • IR suite with C-arm in AP position, balloon-expandable stent delivery system beside iliac vascular phantom on procedure table, clinical endovascular environment
Balloon-Expandable Stent Delivery System — Hand-Braided Catheter Platform

Balloon-Expandable Stent Delivery System — Hand-Braided Catheter Platform

$4,199.00
$4,199.00

M4D LLC manufactures this 0.035"-compatible balloon-expandable stent delivery platform with a 304 SS hypotube proximal spine, hand-braided 24-wire Pebax 55D mid-zone, blow-molded Nylon 12 balloon (15 mm × 20 mm, >18 ATM rated burst per ISO 10555-4), and dual platinum full-ring marker bands UV-locked (365 nm) at balloon shoulders. Designed for iliac, renal, and SFA balloon-expandable stenting with ±0.15 mm diameter tolerance at 8 ATM working pressure.

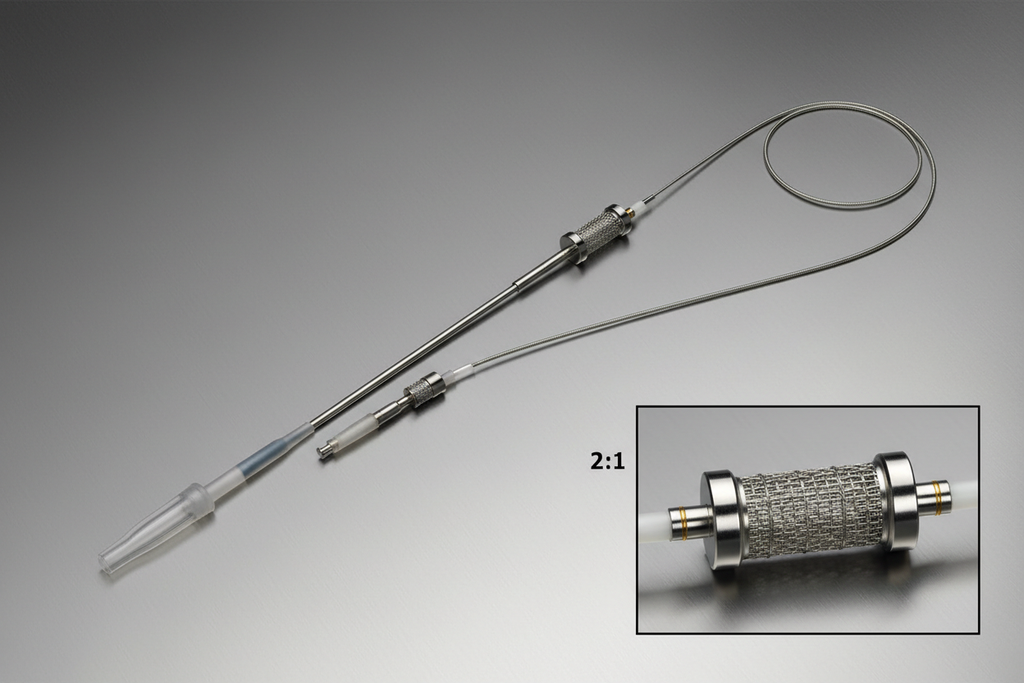

Full stent delivery system on surgical-steel-gray background with macro inset of stent-loaded balloon section and dual platinum marker bands

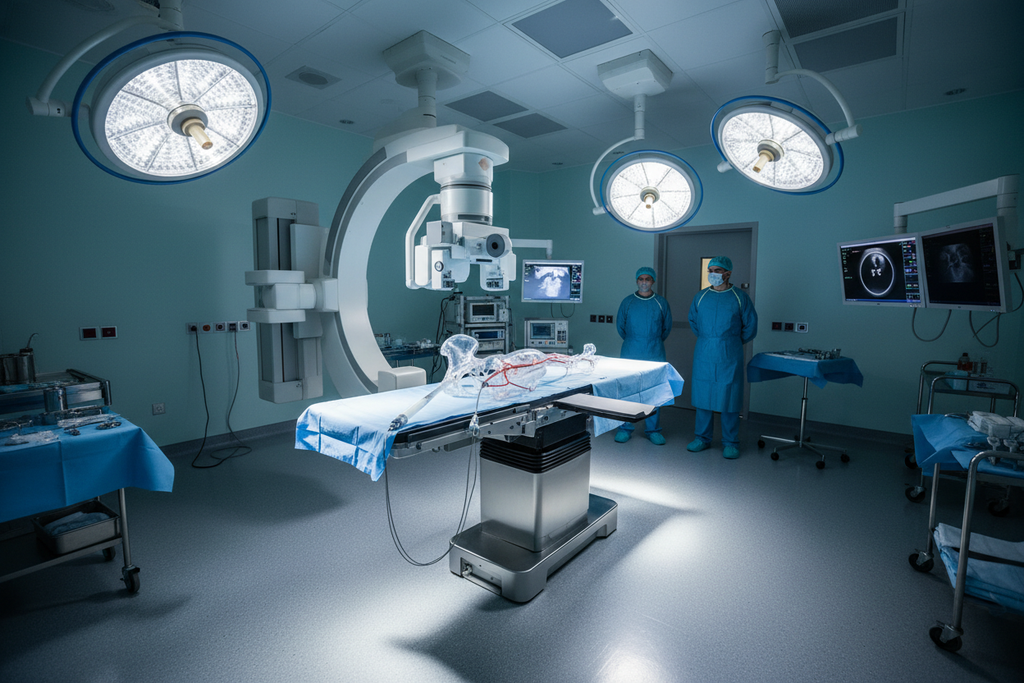

IR suite with C-arm in AP position, stent delivery system beside iliac phantom on procedure table

Catheter Platform Specs
Balloon Material Nylon 12, blow-molded, 15 mm × 20 mm
Working Pressure 8 ATM (±0.15 mm diameter tolerance)
Rated Burst >18 ATM per ISO 10555-4
Guidewire Lumen 0.035 in. compatible
Marker Band Spacing 20 mm inter-band (balloon shoulder to shoulder), Pt full-ring, UV 365 nm locked
Cleanroom Class ISO Class 8
Proximal Spine 304 SS hypotube
Mid-Zone Braid 24-wire hand-braided, Pebax 55D jacket
Target Anatomy Iliac, renal, superficial femoral artery (SFA)
EtO Compatibility Yes
Regulatory ISO 13485:2016, FDA Registered, QCBD QMS
