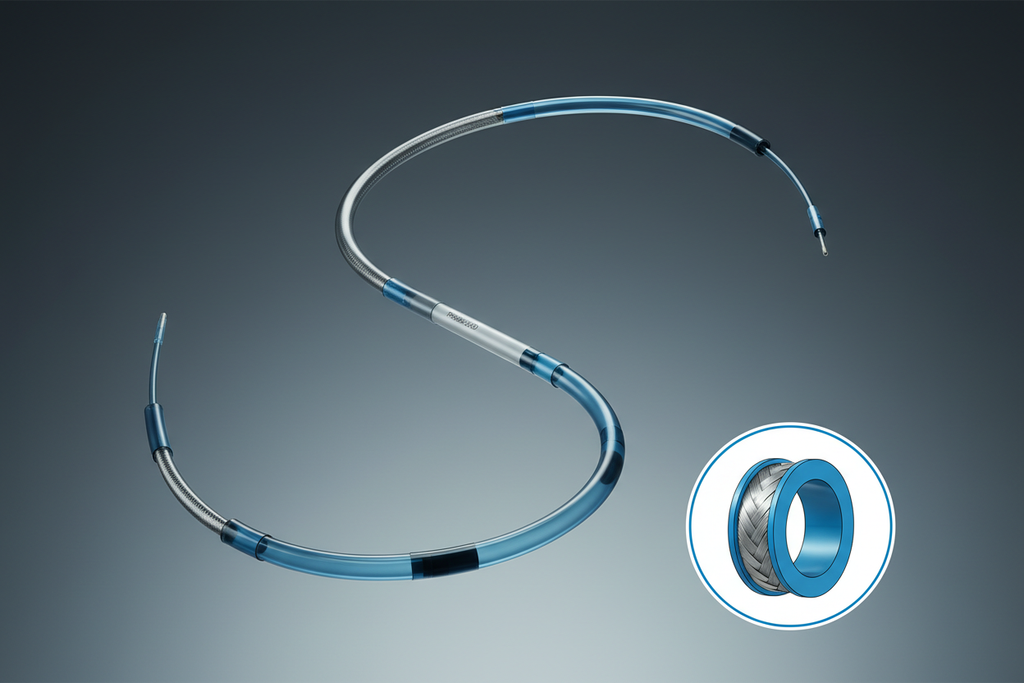

Neuro intermediate catheter in S-curve replicating cervical ICA tortuosity, dual-layer coaxial cutaway insert in lower right, cool-gray gradient background, bilateral rim lighting highlighting translucent 25D distal segment

Neuro Intermediate Catheter — Dual-Layer Coaxial Aspiration System | 0.060"–0.070" ID, Nitinol Braid, 125 cm, SOFIA/REACT-Compatible

$2,299.00
$2,299.00
Skip to product information
Neuro intermediate catheter in S-curve replicating cervical ICA tortuosity, dual-layer coaxial cutaway insert in lower right, cool-gray gradient background, bilateral rim lighting highlighting translucent 25D distal segment
  • Neuro intermediate catheter in S-curve replicating cervical ICA tortuosity, dual-layer coaxial cutaway insert in lower right, cool-gray gradient background, bilateral rim lighting highlighting translucent 25D distal segment

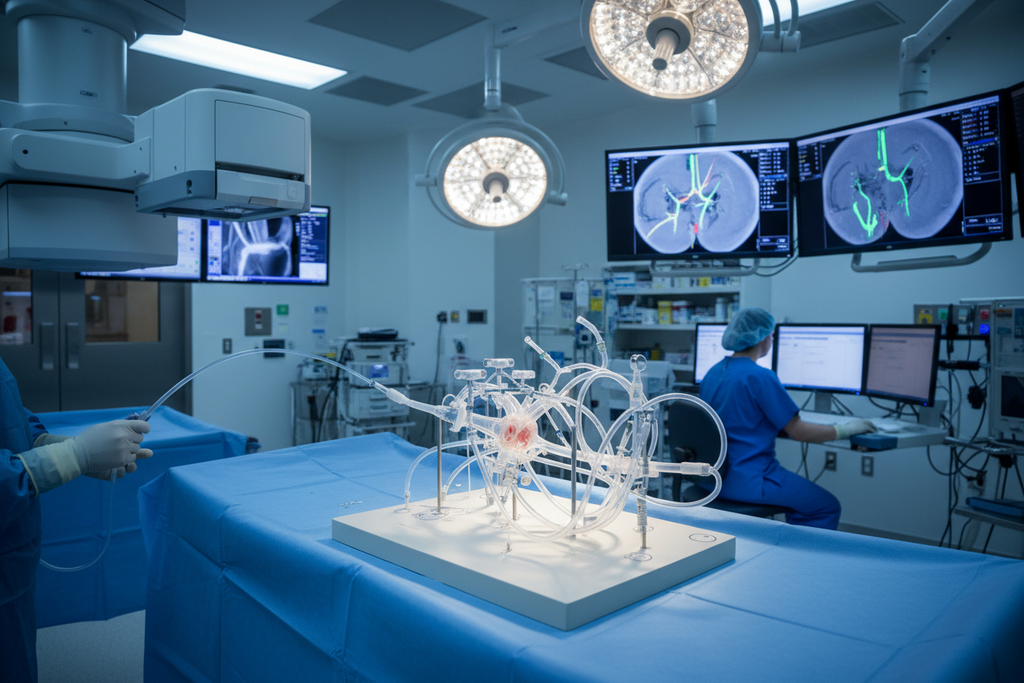

  • Neuro intermediate catheter tracking through vascular model on angio table in hybrid OR suite, C-arm gantry at lateral angulation, nurse at workstation in background, sterile field

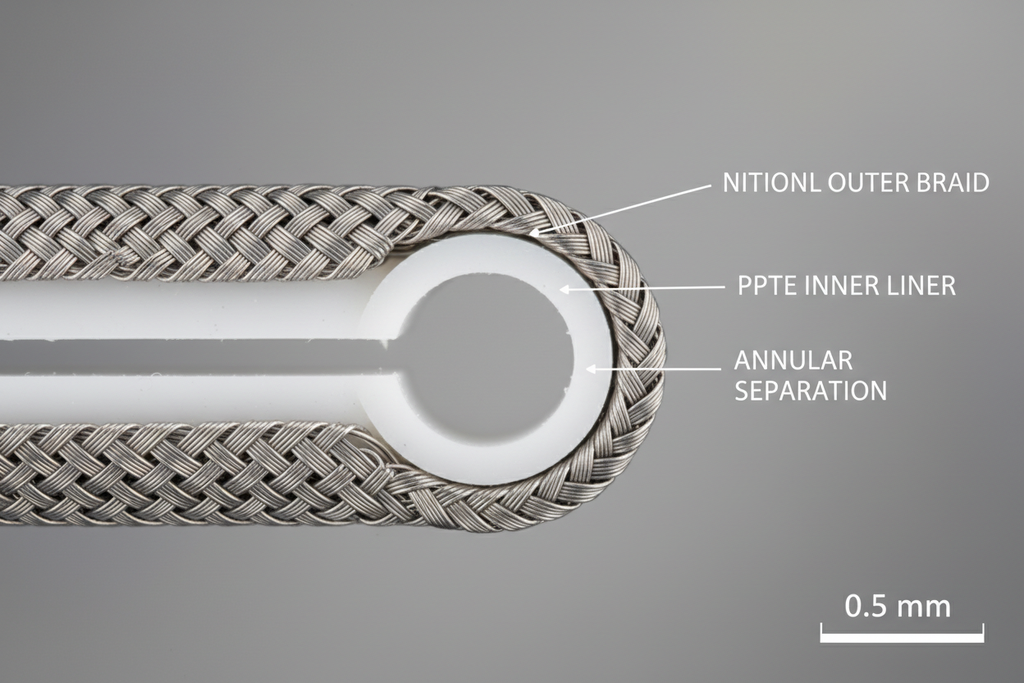

  • 12x stereomicroscope close-up of dual-layer catheter cross-section showing nitinol braid wire geometry and PTFE inner liner, white annotation lines at layer boundaries, 0.5 mm scale bar overlaid
  • Neuro intermediate catheter in S-curve replicating cervical ICA tortuosity, dual-layer coaxial cutaway insert in lower right, cool-gray gradient background, bilateral rim lighting highlighting translucent 25D distal segment
  • Neuro intermediate catheter tracking through vascular model on angio table in hybrid OR suite, C-arm gantry at lateral angulation, nurse at workstation in background, sterile field
  • 12x stereomicroscope close-up of dual-layer catheter cross-section showing nitinol braid wire geometry and PTFE inner liner, white annotation lines at layer boundaries, 0.5 mm scale bar overlaid
Neuro Intermediate Catheter — Dual-Layer Coaxial Aspiration System | 0.060"–0.070" ID, Nitinol Braid, 125 cm, SOFIA/REACT-Compatible

Neuro Intermediate Catheter — Dual-Layer Coaxial Aspiration System | 0.060"–0.070" ID, Nitinol Braid, 125 cm, SOFIA/REACT-Compatible

$2,299.00
$2,299.00

M4D LLC manufactures dual-layer coaxial neuro intermediate aspiration catheters for large-vessel occlusion stroke intervention. PTFE inner liner with nitinol outer braid and three-zone Pebax jacket; aspiration-rated, soft 25D distal tip, full-ring platinum marker band. ISO 13485:2016 certified, FDA registered.

Assembly Blueprint
Inner Liner PTFE, 0.060"–0.070" ID selectable, 0.0020 in. wall
Outer Braid 16-wire, 1-over-1, Ni-Ti 55.8% Ni, 0.00075 in. flat wire, 55° angle
Nitinol Heat Set 480°C, 12 min, N₂-purged oven
Outer Jacket Pebax 72D (90 cm) / 40D (25 cm) / 25D (10 cm), reflow-bonded
Distal Tip Pebax 25D, atraumatic closed tip, soft
Marker Band Platinum full-ring, UV adhesive 365 nm lock
Aspiration Rating −750 mmHg continuous, 10 min, per APN-009
ID Concentricity ≤0.002 in. ovalization, 5-point bore gauge check per unit
Working Length 125 cm
Guidewire Compatibility 0.014 in. (over-the-wire configuration)
Compatible Systems SOFIA PLUS, REACT 71 coaxial configurations
Cleanroom Class ISO Class 8
Validation Docs IQ/OQ/PQ available for DHF transfer
EtO Compatibility Yes
Regulatory ISO 13485:2016, FDA Registered, QCBD QMS

Priced from $2,149.00 (0.060" ID) to $2,499.00 (0.070" ID). Quote-based for custom ID, tip load, or working length variations. Minimum order: 3 units.
