PICC Line Assembly — Dual-Lumen Peripherally Inserted Central Catheter

$1,849.00
$1,849.00
Skip to product information
Complete dual-lumen PICC line assembly flat-lay on white: bifurcated hub, blue and white color-coded Luer-lock extensions, catheter shaft, atraumatic distal tip, centimeter ruler alongside

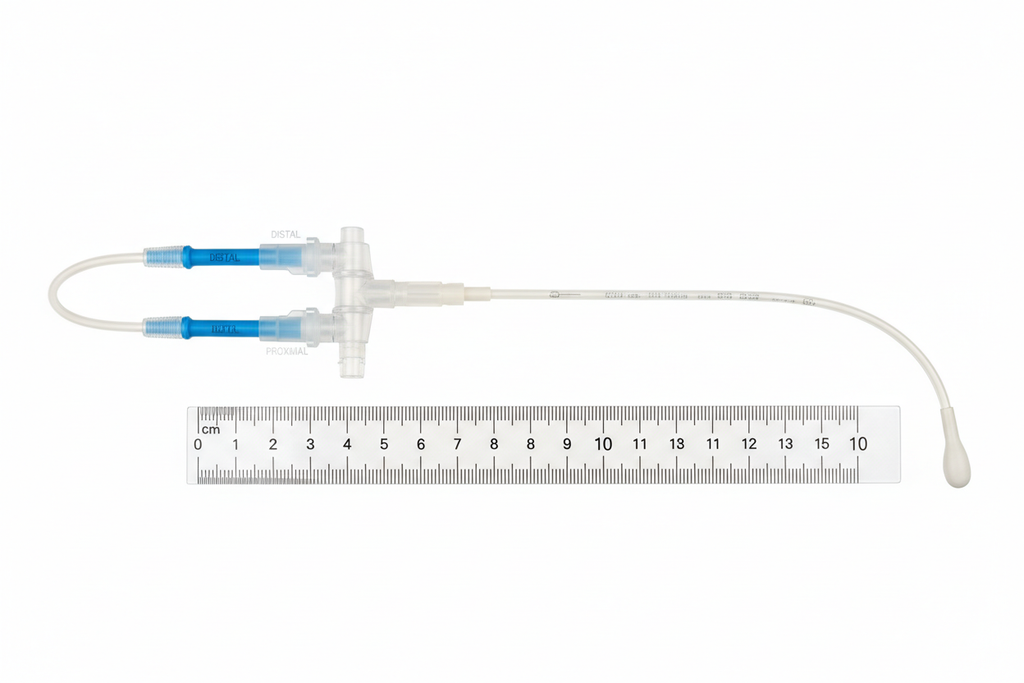

  • Complete dual-lumen PICC line assembly flat-lay on white: bifurcated hub, blue and white color-coded Luer-lock extensions, catheter shaft, atraumatic distal tip, centimeter ruler alongside
  • Vascular access nurse inserting PICC line under ultrasound guidance in hospital infusion suite, patient arm on procedure table, ultrasound machine beside nurse, IV pole with infusion bag in background

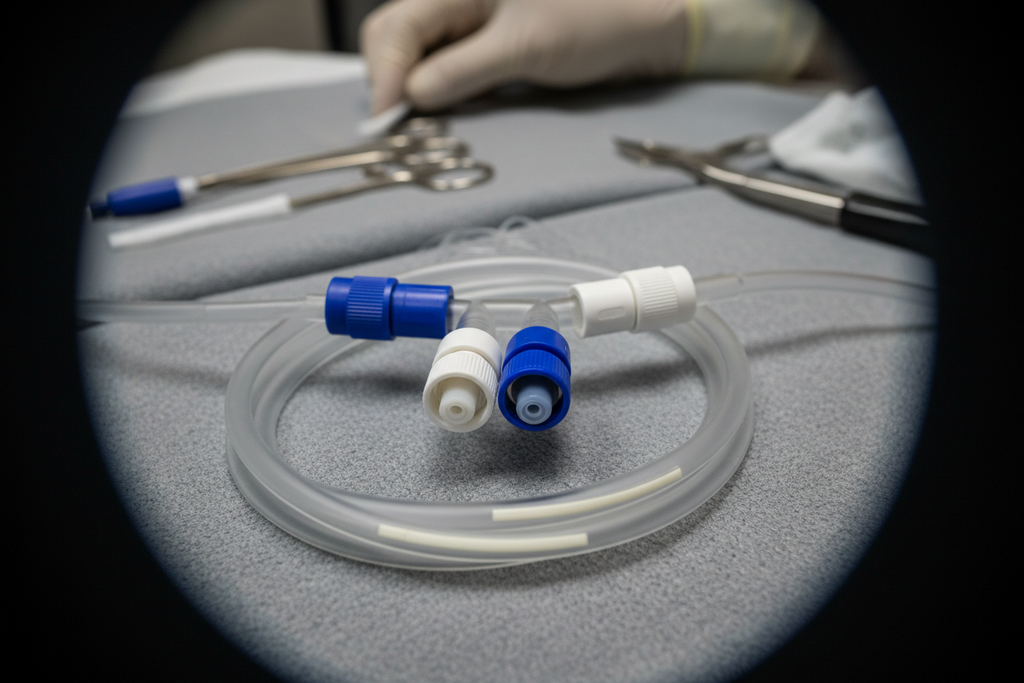

  • 6x magnification close-up of bifurcated PICC line hub showing color-coded blue and white Luer-lock port connections and barium-sulfate radiopaque stripe along catheter shaft cross-section
  • Complete dual-lumen PICC line assembly flat-lay on white: bifurcated hub, blue and white color-coded Luer-lock extensions, catheter shaft, atraumatic distal tip, centimeter ruler alongside
  • Vascular access nurse inserting PICC line under ultrasound guidance in hospital infusion suite, patient arm on procedure table, ultrasound machine beside nurse, IV pole with infusion bag in background
  • 6x magnification close-up of bifurcated PICC line hub showing color-coded blue and white Luer-lock port connections and barium-sulfate radiopaque stripe along catheter shaft cross-section
PICC Line Assembly — Dual-Lumen Peripherally Inserted Central Catheter

PICC Line Assembly — Dual-Lumen Peripherally Inserted Central Catheter

$1,849.00
$1,849.00

M4D LLC manufactures this dual-lumen PICC line from medical-grade polyurethane (PU, Shore 80A) in a co-extruded two-lumen configuration — proximal lumen 0.028" ID for blood sampling and distal lumen 0.040" ID for infusion — with a soft atraumatic distal tip, a barium-sulfate-impregnated radiopaque stripe along the full 55 cm insertable length for fluoroscopic and chest X-ray visualization, and a bifurcated hub with color-coded Luer-lock extensions (blue/white) and a 0.018" guidewire-compatible tip for Seldinger insertion technique.

Studio flat-lay of complete dual-lumen PICC line assembly on white background with bifurcated hub, color-coded Luer-lock extensions, catheter shaft, atraumatic tip, and centimeter ruler for scale

Vascular access nurse inserting PICC line under ultrasound guidance in hospital infusion suite, patient arm visible, IV pole in background

6x magnification close-up of bifurcated PICC hub color-coded Luer-lock ports and barium-sulfate radiopaque stripe along catheter shaft cross-section

Material & Process Sheet
Catheter Material Medical-grade polyurethane (PU), Shore 80A, co-extruded
Lumen Configuration Dual-lumen: proximal 0.028" ID (blood sampling) / distal 0.040" ID (infusion)
Insertable Length 55 cm
Radiopaque Agent Barium sulfate-impregnated stripe, full insertable length, fluoroscopic & CXR visible
Hub Configuration Bifurcated hub, color-coded Luer-lock extensions (blue proximal / white distal)
GW Compatibility 0.018 in., Seldinger insertion technique
Sterilization EtO compatible; sterile per customer specification
Regulatory ISO 13485:2016, FDA Registered, QCBD QMS
