Steerable Guide Extension Catheter — Rapid Exchange Platform

Steerable Guide Extension Catheter — Rapid Exchange Platform

$749.00
$749.00

M4D LLC manufactures this rapid-exchange guide extension catheter with a 6 Fr-compatible outer shaft (Pebax 72D, 145 cm working length), PTFE-lined 0.056" ID inner lumen for coaxial guide catheter engagement, a 14-wire nitinol braid transition zone for kink resistance at the subclavian curve, and a soft hydrophilic-coated Pebax 35D distal 10 cm segment for atraumatic coronary or peripheral ostium engagement without vessel trauma.

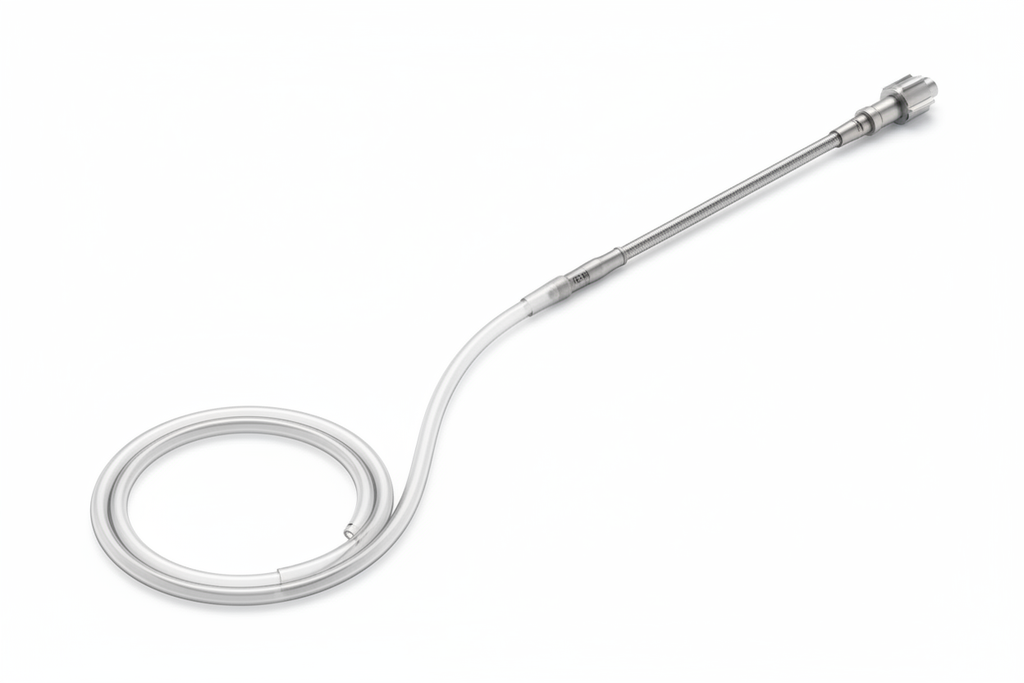

Studio shot of rapid-exchange guide extension catheter on white background, distal soft segment coiled showing hydrophilic coating sheen

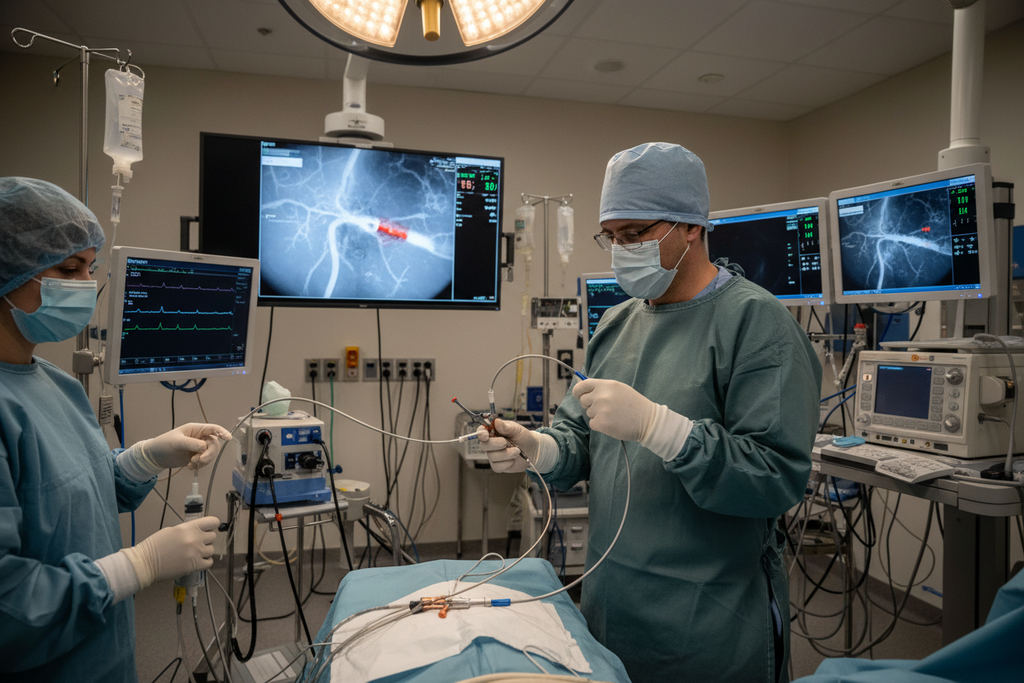

Guide extension catheter engaged coaxially through guiding catheter during complex CTO procedure in cardiac catheterization lab, fluoroscopy monitor in background

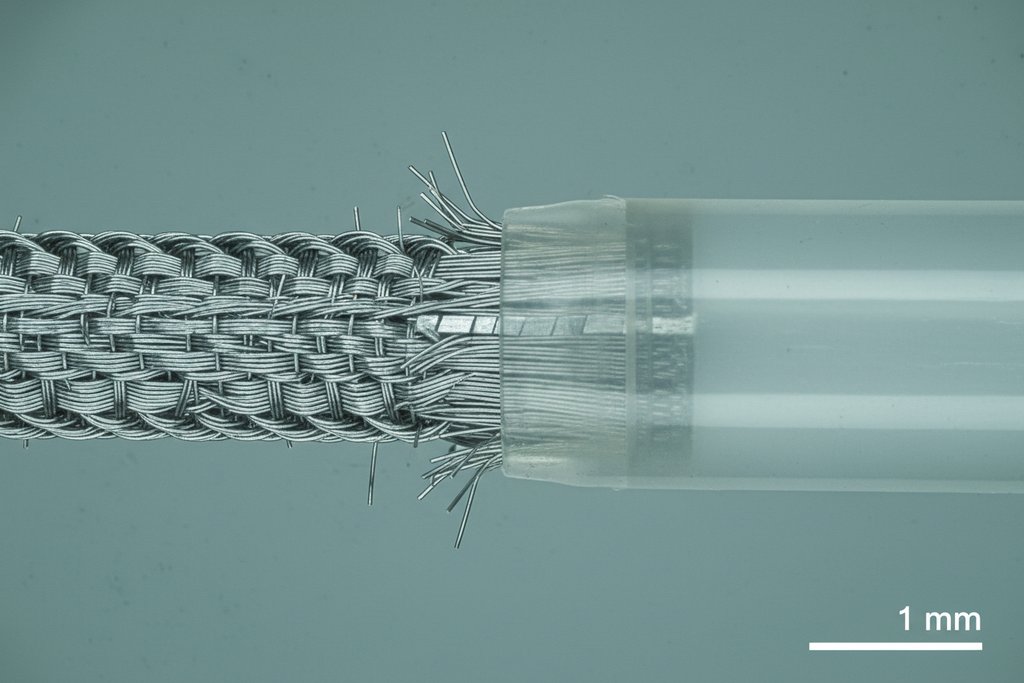

10x magnification close-up of nitinol braid-to-Pebax transition zone showing braid wire termination and reflow bond interface

Performance Sheet
Outer Shaft Material Pebax 72D, 6 Fr-compatible
Inner Lumen ID 0.056 in., PTFE-lined
Braid Configuration 14-wire nitinol, transition zone for kink resistance at subclavian curve
Distal Zone Durometer Pebax 35D, 10 cm, atraumatic soft tip
Working Length 145 cm
Hydrophilic Coating Yes, distal 10 cm segment
GW Compatibility 0.014 in. rapid-exchange configuration
EtO Compatibility Yes
Regulatory ISO 13485:2016, FDA Registered, QCBD QMS
